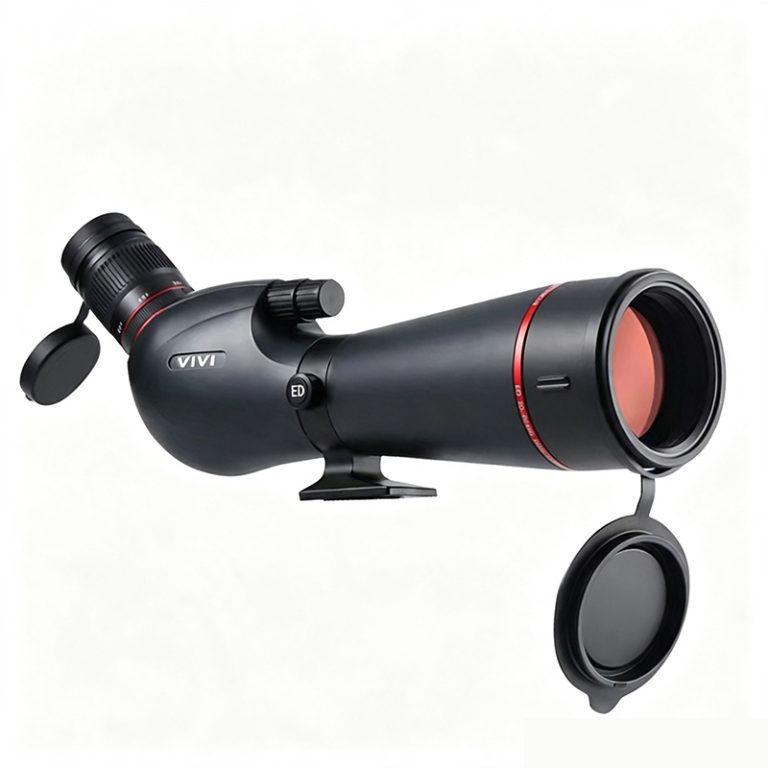

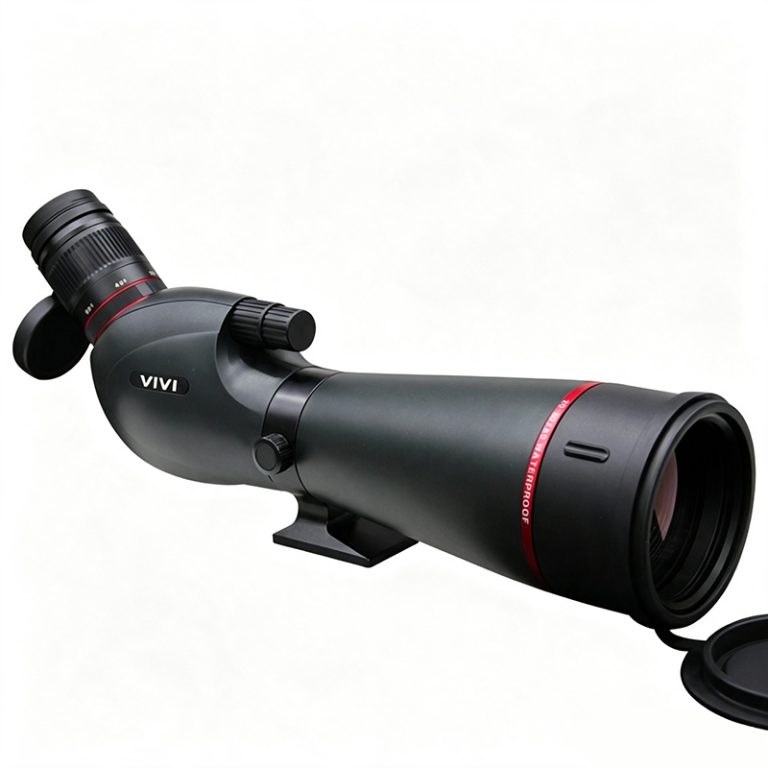

VIVI Voyager 20-60x80ED Long-Range ED Spotting Scope
VIVI Voyager 20-60x80ED spotting scope is a variable-magnification observation instrument built for long-range work, from range sessions and surveillance posts to wildlife and field survey observation. Its 80mm large-aperture objective is fitted with ED glass, which reduces chromatic aberration so distant edges stay clean and color-true at high magnification, while a BAK4 high-definition prism and FMC broadband multi-layer anti-reflection coating maximize the light that reaches your eye.
Product Description
The VIVI Voyager 20-60x80ED spotting scope is a variable-magnification observation instrument built for long-range work, from range sessions and surveillance posts to wildlife and field survey observation. Its 80mm large-aperture objective is fitted with ED glass, which reduces chromatic aberration so distant edges stay clean and color-true at high magnification, while a BAK4 high-definition prism and FMC broadband multi-layer anti-reflection coating maximize the light that reaches your eye.
The 20-60x zoom range is paired with a 45°-angled eyepiece and a dual-speed focusing wheel — coarse for fast target acquisition, fine for snapping the final detail into focus. A military-standard rangefinder reticle (graticule) is etched into the view, supporting estimating distances and target size from fine-scale positions. With a minimum focus distance of just 8m, the same scope works for close study and extreme distance alike.
Waterproof and shockproof, with 21-16mm of eye relief across the zoom range and a -4 to +4 D diopter adjustment, the VIVI Voyager 20-60x80ED is a versatile, one-scope solution for observers who need to read detail at distances handheld optics simply cannot reach.
ED Objective for Color-True Detail
The 80mm ED objective reduces the chromatic fringing that grows with magnification, keeping high-contrast targets sharp and true to color at the top of the zoom range.
20-60x Zoom with Dual-Speed Focus
Turn the magnification ring down to 20x for a wide scan, up to 60x for fine detail, and use the dual-speed focus wheel to move from fast acquisition to precise resolution in seconds.
Military-Standard Rangefinder Reticle
The built-in graticule supports estimating target distance and size from fine-scale positions — a working tool for range work, security posts and field assessment.
Why Choose the VIVI Voyager 20-60x80ED?
The VIVI Voyager 20-60x80ED stands out in VIVI’s 80mm spotting scope lineup for its combination of ED glass and a military-standard rangefinder reticle. The 80mm ED objective is the key difference from the VIVI BD80HD 20-60×80 spotting scope, which offers the same aperture and zoom range with standard HD optics: if you spend long sessions at 50-60x reading fine detail — bullet holes, plumage, equipment markings — the ED glass of the Voyager keeps edges cleaner and colors truer where ordinary glass starts to fringe.
The rangefinder reticle adds a capability most spotting scopes leave out. Using the fine-scale graticule, you can support estimating distances and target dimensions without carrying a separate measuring tool, which is why the 20-60x80ED suits security posts, range duty and survey work as naturally as bird watching and wildlife observation. The 27mm large eyepiece (7 elements in 4 groups) and 45° viewing angle keep long sessions comfortable, while the 8m minimum focus distance handles unexpectedly close subjects.
Choose the VIVI Voyager 20-60x80ED when detail at extreme distance and reticle capability define your work; choose the VIVI BD80HD 20-60×80 when you want the same 80mm light grasp and zoom flexibility in a simpler, value-focused package.
Product Features
- 20-60x Variable Magnification: The full zoom range supports broad scanning at 20x and extreme detail at 60x, making one scope flexible enough for every task.
- 80mm ED Objective Lens: The large-aperture ED glass reduces chromatic aberration and gathers ample light for clear, color-true long-range images.
- Military-Standard Rangefinder Reticle: The etched graticule supports estimating target distance and size from fine-scale positions during range and field work.
- Dual-Speed Focusing Wheel: Coarse and fine focus speeds let you acquire targets fast and then resolve the finest detail precisely.
- BAK4 High-Definition Prism: The BAK4 prism delivers bright, high-contrast imaging across the entire zoom range.
- FMC Broadband Multi-Layer Coating: Full multi-layer broadband anti-reflection coating maximizes light transmission for brighter, clearer views.
- 45° Angled Eyepiece: The angled viewing position keeps long observation sessions comfortable without craning your neck upward.
- 27mm Large Eyepiece (7 Elements in 4 Groups): The oversized, multi-element eyepiece presents a wide, relaxed view that eases extended viewing.
- 8m Minimum Focus Distance: Close-focus capability lets you study nearby subjects with the same instrument you use at extreme range.
- 21-16mm Eye Relief: Ample eye relief across the zoom range supports comfortable viewing, including for glasses wearers.
- -4 to +4 D Diopter Adjustment: Per-user diopter correction matches the image precisely to your eyesight.
- Waterproof & Shockproof Construction: Sealed, reinforced housing stands up to rain, knocks and rough field transport.

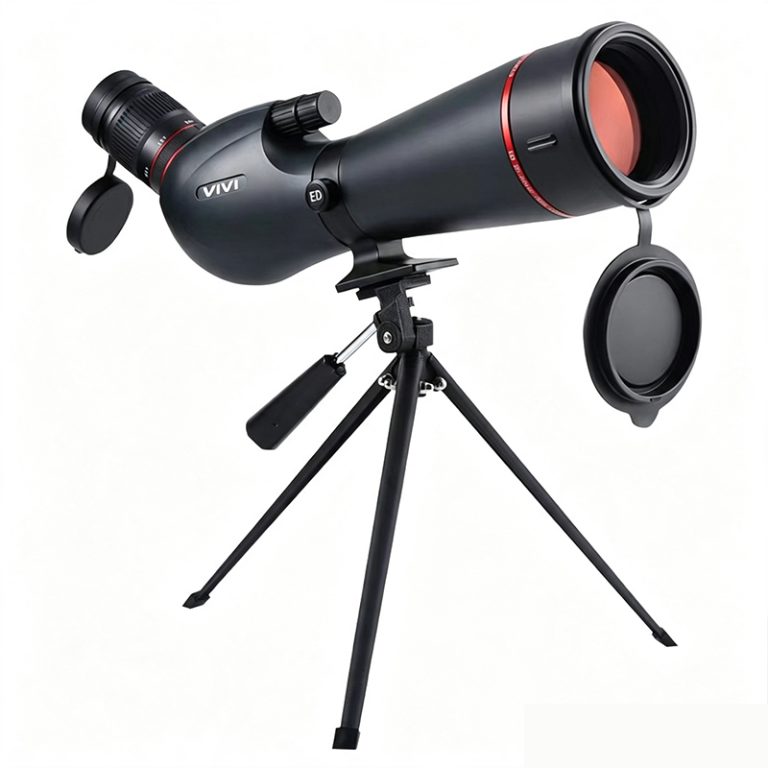

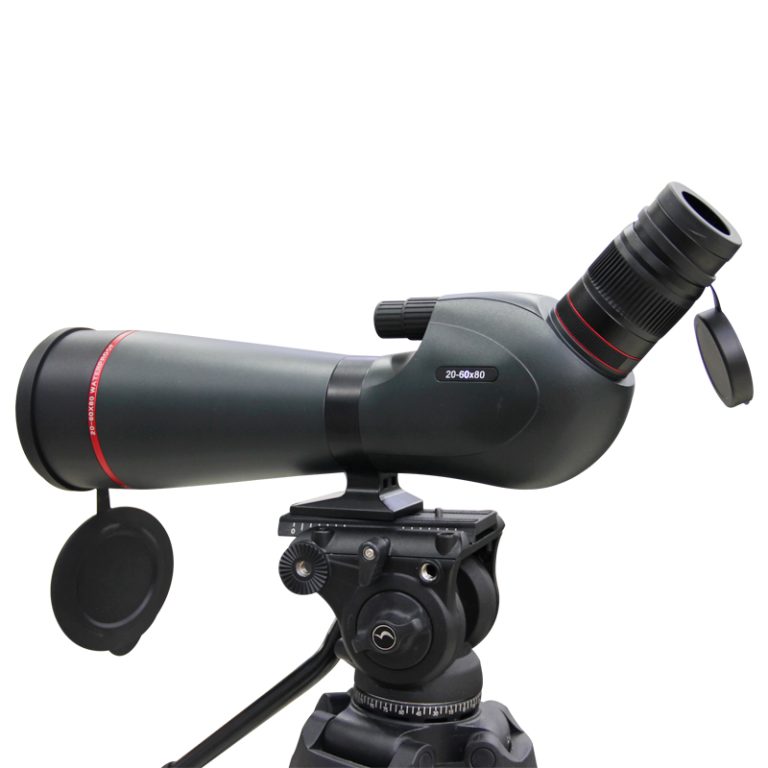

- Tripod Support (Optional): Tripod mounting keeps the high-magnification image steady for extended observation.
Application Areas
Target Shooting and Range Duty
Set the zoom to 60x to read bullet holes at distance, and use the military-standard reticle to support estimating range to targets — one scope for the whole session.
Bird Watching
The 80mm ED objective renders fine plumage detail with true color at 50-60x, and the 8m minimum focus distance keeps unexpectedly close birds in play.
Long-Range Wildlife Observation
Zoom from a wide 20x search view to 60x for identification, watching wary animals from distances that do not disturb them.
Security and Surveillance Posts
The rangefinder graticule supports estimating distances and target size for reporting, while the 45° eyepiece keeps extended watches comfortable.
Hunting
Glass distant ridgelines and field edges at 20x, then confirm antler or trophy detail at 60x before committing to a stalk.
Power Safety Inspection
High magnification lets inspectors examine insulators, connections and hardware on transmission structures from safe, grounded positions.
Forestry and Land Surveys
The reticle’s fine scales support estimating distances to plot markers and boundaries, with the zoom range covering both overview and verification.
Archaeological and Field Research
From the 8m close focus to extreme distance, the 20-60x range documents excavations, structures and terrain features in a single instrument.
Sports and Outdoor Events
Even from the farthest seats or perimeter positions, 60x magnification puts players, sails and finish-line detail squarely in view.
Technical Parameters
| Specifications | Technical Parameter |
|---|---|
| Model | Voyager 20-60x80ED |
| Magnification | 20-60x |
| Objective Diameter | 80mm |
| Barrel Diameter | 100mm |
| Prism Type | BAK4 |
| Eyepiece Diameter | 27mm (7 elements in 4 groups) |
| Coating | FMC broadband multi-layer coating |
| Focusing System | Dual-speed focus |
| Field Angle | 2.2°-1.2°* |
| Eye Relief | 21-16mm |
| Diopter Adjustment | -4 to +4 D |
| Minimum Focus Distance | 8m |
| Eyepiece Angle | 45° |
| Reticle | Military-standard rangefinder reticle |
| Waterproof Rating | Waterproof & shockproof construction |
| Product Weight | 1550g |
| Product Size | 435 x 100 x 170mm |
| Tripod Support | Supported (optional) |
FAQ
Are VIVI Voyager 20-60x80ED spotting scopes waterproof?
Yes. The spotting scope features waterproof and shockproof construction, so it keeps working through rain and rough field handling.
What is the field of view of the VIVI Voyager 20-60x80ED?
The field angle runs from 2.2° at 20x for wide scanning down to 1.2° at 60x for close study — the natural trade-off of a zoom spotting scope as magnification rises.
Can the VIVI Voyager 20-60x80ED be mounted on a tripod?
Yes. Tripod support is provided (tripod optional), and mounting on a stable tripod is the recommended way to use the scope at higher magnifications.
Do I need a tripod at high magnification?
Yes, a tripod is strongly recommended at 50-60x. At those powers any hand movement is greatly amplified and the field narrows to 1.2°, so a stable tripod — combined with the dual-speed focus — is the practical way to read fine detail.
How much does the VIVI Voyager 20-60x80ED weigh?
The spotting scope weighs 1550g — substantial enough for a stable view, still manageable in a pack for range, field or travel use.
What magnification range does the VIVI Voyager 20-60x80ED offer?
It offers a continuous 20-60x zoom range: 20x for locating and scanning subjects, 60x for maximum detail. Note that as magnification increases, the field of view narrows and the image brightness decreases.
Does the VIVI Voyager 20-60x80ED have a rangefinder?
It has a military-standard rangefinder reticle (graticule) that supports estimating target distance and size from fine-scale positions. It is a reticle-based estimating tool, not a laser rangefinder.
What is the difference between the VIVI Voyager 20-60x80ED and the VIVI BD80HD 20-60×80?
Both are 80mm 20-60x spotting scopes. The VIVI Voyager 20-60x80ED adds ED glass for reduced chromatic aberration at high power plus a military-standard rangefinder reticle, while the VIVI BD80HD 20-60×80 covers the same aperture and zoom range in a value-focused package without ED glass or the reticle.
